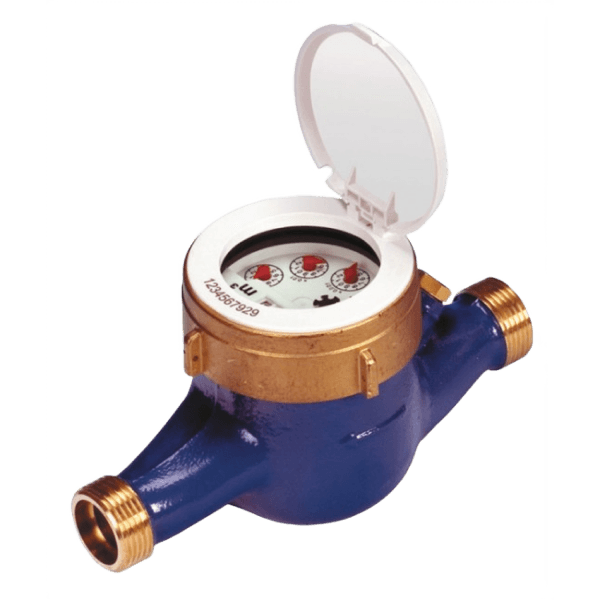

M100

  • Multi-jet wet water meter DN15-DN50 with a threaded connection and horizontal housing
  • The most prevalent water meter in the Republic of Croatia and the rest of Europe
  • Accuracy class C (R=160) in the horizontal position and B (R=80) in the vertical position
  • Bearing position made of synthetic sapphire for durability and stability
  • Standard or magnetic pointer
  • Water meter for cold water up to 50°C
  • The water meter can be submerged: IP68 protection
  • Option: Water meter with a vertical housing that has accuracy class C (R=160)
  • Additional options: Non-return valve and strainer.
Compare

Compatible products

IKOM – water meter chamber "south"

Water • Water meter shafts

IKOM – water meter chamber "south"

Nuts and connectors for water meters

Water • Water meter spare parts

Nuts and connectors for water meters

Reed Disc

Water • Pulse outputs

Reed Disc

Elipsasto vodomjerno okno

Water • Water meter shafts

Elipsasto vodomjerno okno

IKOM-M100 is a multi-jet wet water meter available in sizes DN15-DN50, designed for cold water up to 50°C. It offers Class C accuracy (R=160) horizontally and Class B (R=80) vertically, with a durable bearing position made of synthetic sapphire. If equipped with a magnetic pointer, it can be upgraded with a Reed Disc pulse output.
