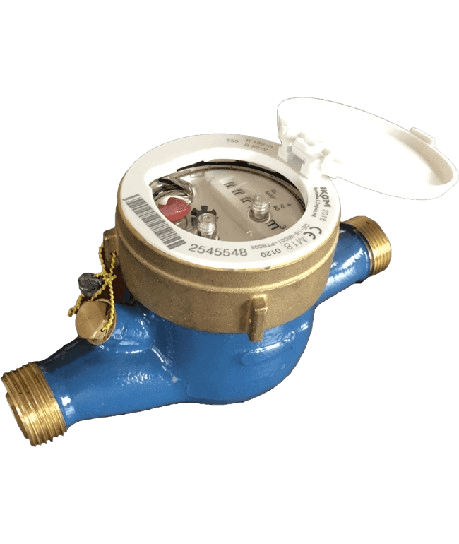

M100i

High-quality multi-jet wet water meters for cold water
Accuracy class R160 in the horizontal and R80 in the vertical position
Available in sizes from DN15 to DN50 with a threaded connection, with an option for a 2" flange connection
Can be installed in both mounting positions without a loss of measurement accuracy
The most prevalent water meter in the Republic of Croatia and the rest of Europe
Designed for measuring cold water consumption up to 50⁰C.

Compare

Compatible products

Water • Water meter shafts

IKOM – water meter chamber "south"

Water • Water meter cabinets

IKOM – Ormarić za ugradnju vodomjera OVV4

Water • Radio modules

Merlin 868 wM-Bus

Water • Pulse outputs

FALCON MJ Pulse/M-Bus

M100i is the most prevalent type of water meter on the European market, featuring a high-quality wet mechanical mechanism, exceptional durability, and a built-in inductive pointer. M100i is a multi-jet wet water meter with a size range of DN15-DN50, threaded connection, and a horizontal housing. It is well-known in Croatia and across Europe, with Class C accuracy (R=160) horizontally and Class B (R=80) vertically. The bearing location is made of synthetic sapphire for longevity, measuring cold water up to 50°C, with IP68 protection against submersion. It can be upgraded with a FALCON MJ pulse output or a MERLIN MJ 868 radio module.
